There is a core charge of $1500 over price. Please contact up before order to ensure the correct part is ordered.

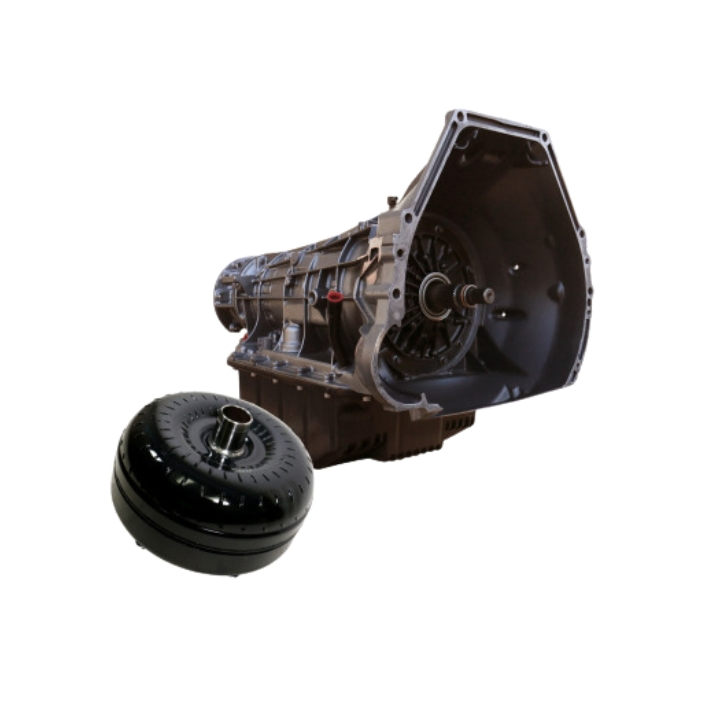

BD Diesel Ford 4R100 Transmission & Converter Package (4WD)
if you got a 99-03 Ford Super duty with the 7.3L Powerstroke diesel (or even the big gas motors), you already know the stock 4R100 automatic transmission is a total weak link. They just burn up way too fast. The second you put a custom tune on the truck for more horsepower or try to tow a heavy trailer, the factory clutches start slipping bad. then the line pressure drops and the whole thing just cooks itself from crazy high heat.this BD Diesel 4R100 transmission & torque converter package (part# 1064444SM) is built to fix all them factory mistakes. This is a complete heavy-duty replacement assembly made strictly for 4WD trucks. BD completely re-worked the internal oil circuits to crank up the line pressure. That stops the soft, lazy shifting and snaps the gears into place instantly. since it locks up fast, your friction plates dont slide around and fry under heavy torque loads. to make the swap easy, this package comes out of the box with an upgraded single-disc converter and a fresh replacement filter kit too.Upgrades inside and why it matters:
- Heavy duty Single-Disc Converter: got a tough single-disc clutch system that bites hard under big loads. It stops internal slipping completely, so engine power goes straight to the transfer case instead of boiling your transmission fluid.
- Recalibrated Valve Body: BD fixes the messy factory hydraulic paths to stop sloppy gear changes. Fast, firm shifts means your clutches spend less time sliding and overheating.
- Tougher Core Parts: built with upgraded friction linings, stronger forward drums, and high-temp seals that wont leak or blow out when you are pulling a heavy grade.
- Inbound Filter Kit: you get a clean fluid filter right in the package to keep the new valve body safe from dirt or metal junk at first startup.
Vehicle Fitment Guide
This replacement transmission is a direct bolt-in swap for these 4-wheel drive Ford rigs:- Ford F-250 Super Duty (7.3L Powerstroke / Gas V8 / V10): 1999, 2000, 2001, 2002, 2003
- Ford F-350 Super Duty (7.3L Powerstroke / Gas V8 / V10): 1999, 2000, 2001, 2002, 2003
- Ford F-450 / F-550 Super Duty (7.3L Powerstroke): 1999, 2000, 2001, 2002, 2003
Quick Tech Specs
- Brand: BD Diesel Performance
- Part Number: 1064444SM
- Transmission Model: Ford 4R100 (4-Speed Auto)
- Drivetrain Setup: 4WD (Four-Wheel Drive Only)
- Converter Style: Upgraded Single Disc
Installation FAQs
Does this part number include the torque converter or is it separate?
its all in one box. You get the built 4R100 transmission assembly, the heavy-duty single-disc converter, and the fresh replacement filter kit under this single part number (1064444SM).Will this unit bolt up to a 2WD Super Duty truck?
No, it wont work at all. This build uses the short tailhousing and the specific output shaft meant strictly to line up with a 4WD transfer case. It will not fit a 2WD chassis.Do I really need to flush my old cooler lines before putting this in?
Yes, do not skip this step or you will instantly ruin the new unit. If your old transmission burned up, your factory lines and auxiliary cooler are full of metal flakes, friction material, and old burnt fluid trash. If you dont flush those lines completely clean before firing up this new BD transmission, that old debris will pump straight into your new valve body at startup and destroy it.
