Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms

Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms

Name: Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms - Wyld Performance
SKU: hot1108
Price: 1179.07 USD
Availability: InStock

SKU: hot1108

Original price was: $1,377.77.Current price is: $1,179.07.

In stock

1 in stock

Add to wishlistAdd to compare

Categories: Suspension, Last Chance Deals

Hotchkis 70-81 Camaro/Firebird Tubular Lower A-Arms

PRODUCT OVERVIEW

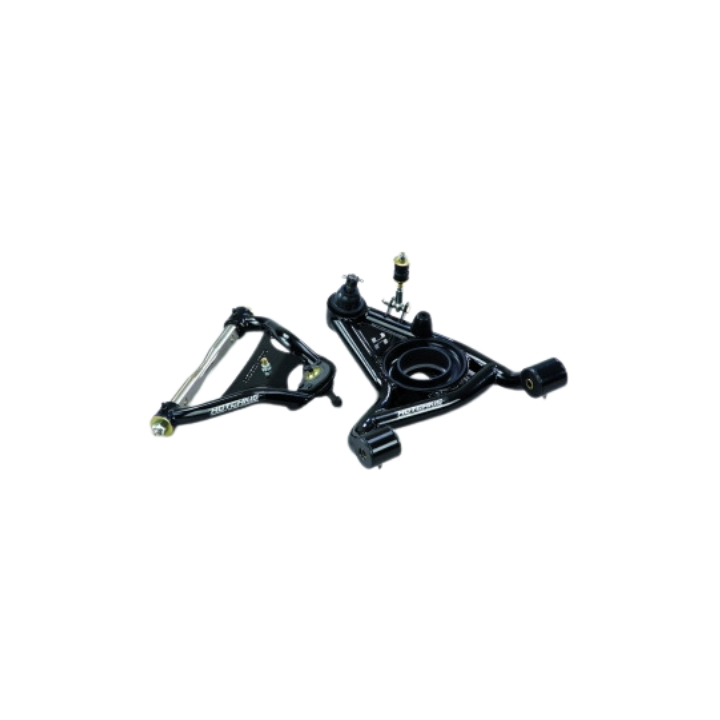

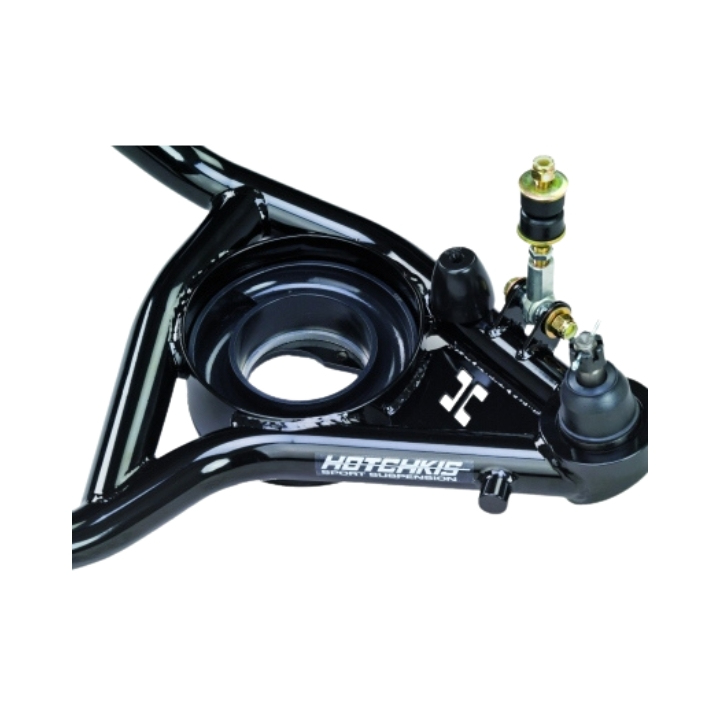

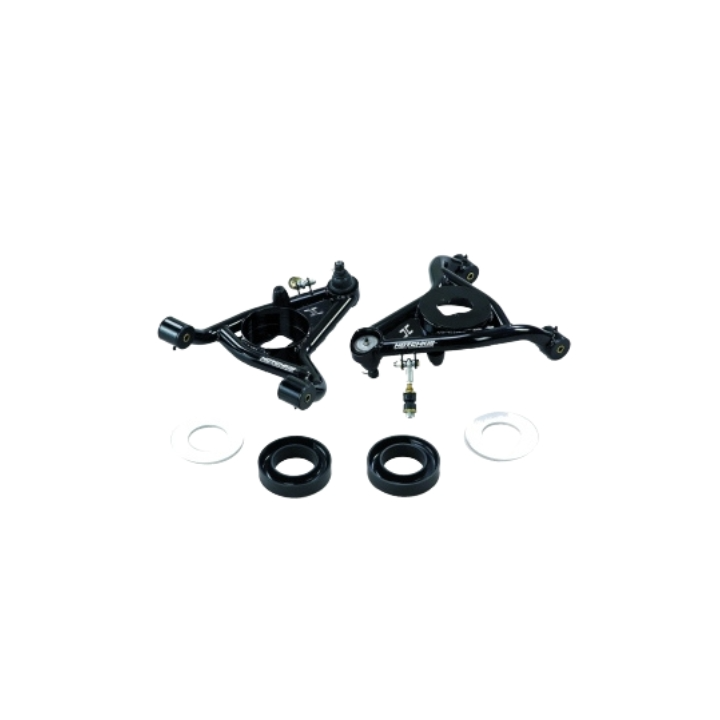

Install the Hotchkis Sport Suspension geometry corrected Tubular Lower A-Arms on your 70-81 Camaro or Firebird and gain vastly increased handling and control. These TIG-welded bolt-on have re positioned ball joints for increased caster and improved camber curve resulting in improved stability and traction. Adjustable shims offer ride height adjustment for ultimate performance and a great look regardless of engine and transmission combinations. Smooth operating Delrin bushings allow the arms to move through their travel easily. Finished in gloss black powder coat the arms are ready to install and are complete with ball joints bump stops ride height shims polyurethane coil spring locators and Delrin bushings. Exceptional handling performance when combined with the Hotchkis Sport suspension geometry corrected Tubular Upper A-Arms. New Lower Prices Features: Geometry corrected design. Built in - 0.6 deg of Camber 2 deg of Caster 100% TIG-welded 1.5 in. tubular steel construction. CNC machined inset spring cup. Precision aluminum ride height adjustment shims and polyurethane coil spring isolators. Easy to lubricate Delrin bushings. Lower ball joint installed. Laser cut Hotchkis logo Gloss black powder coat finish Made In USA Benefits: CAD designed and analyzed by FEA software for ultimate strength and efficiency. Increased structural rigidity due to CNC machined inset spring cup. Aluminum shims allow for .25 in. to .50 in. ride height adjustment. Additional shims available separately. Delrin bushings allow smooth operation with minimal deflection through travel range. Achievable specs when using 1106 upper control arm and 1108 lower control arm. MAX Caster with Uppers and Lowers = 9 deg MAX Camber with Uppers and Lowers = - 3.5 deg

Features and Benefits

Gloss Black Powder Coat

Product Info

Alternate Description

70-81 CAMARO LOWER A-ARMS

Part Number

HOT1108

Vendor Part Number

1108

UPC Code

810361030178

Package Weight

41.60 lbs

18.87 kg

Package Length

20.7 in

52.58 cm

Package Width

17.5 in

44.45 cm

Package Height

10.1 in

25.65 cm

Attributes

Style	Tubular
Upper/Lower	Lower
Application Specific	Yes
OE Compatible	Yes
Spring Cup	Yes
Driver/Passenger Side	Driver / Passenger
Length	OEM
Ball Joint Style	Press-In
Ball Joint Included	Yes
Bushing Style	Bushing
Bushing Material	Plastic
Greasable	Yes
Sway Bar Mount	Yes
Hardware Included	Yes
Material	Steel
Color	Black
Finish	Powder Coat
Quantity	Pair

[NB: Last Chance Deals item — Limited stock. Please confirm fitment before ordering. No returns on incorrect orders. Transit damage claims only.]
