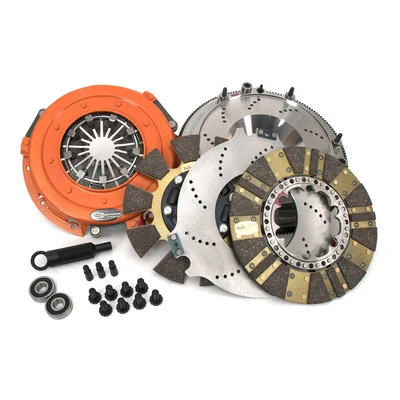

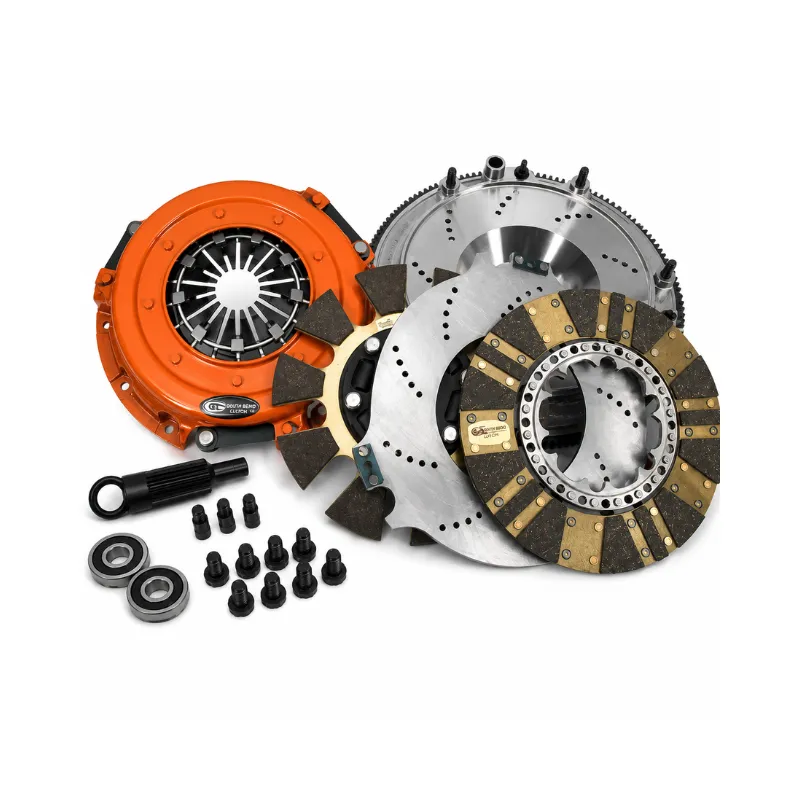

Centerforce CTF413614847 DYAD DS Dual Disc Clutch & Flywheel Kit for Chevrolet Camaro LSA (2012-2015)
The Centerforce CTF413614847 DYAD DS Clutch and Flywheel Kit is a high-performance dual-disc clutch system engineered for 2012-2015 Chevrolet Camaro applications equipped with the LSA engine. Designed to handle substantial horsepower and torque while maintaining excellent street manners, the DYAD DS combines advanced dual-disc technology with a durable steel flywheel and a unique organic/carbon friction material. The result is exceptional holding capacity, smooth engagement, and reliable performance for high-powered street and track vehicles.Key Benefits
- Dual-disc design provides increased torque-holding capacity.
- Delivers excellent drivability for street and performance applications.
- Organic and carbon friction materials offer a balance of grip and longevity.
- Weight-assisted pressure plate enhances clutch holding power.
- Includes steel flywheel for a complete clutch replacement solution.
- Designed to handle the demands of modified and high-horsepower vehicles.
- Provides smooth engagement with improved power transfer.
- Complete kit includes installation hardware and alignment components.
Key Features
- DYAD DS dual-disc clutch system.
- 10.4-inch clutch disc diameter.
- 1-1/8-inch, 26-spline input configuration.
- Combination full-face and puck-style disc design.
- Organic and carbon friction materials.
- Weight-assisted diaphragm pressure plate.
- High-strength steel flywheel included.
- Pilot bearing and alignment tool included.
- Internal balance flywheel design.
- Complete installation hardware package.
Technical Specifications
| Specification | Details |
| Manufacturer | Centerforce |
| Part Number | CTF413614847 |
| Product Line | DYAD DS |
| Clutch Type | Dual Disc |
| Disc Quantity | 2 |
| Input Spline Count | 26 |
| Input Shaft Diameter | 1.125 in |
| Disc Diameter | 10.4 in |
| Disc Material | Organic / Carbon |
| Disc 1 Style | Full Face |
| Disc 1 Sprung Hub | No |
| Disc 2 Style | Puck |
| Disc 2 Sprung Hub | Yes |
| Number of Pucks | 10 |
| Pressure Plate Included | Yes |
| Pressure Plate Style | Diaphragm |
| Weight Assisted Pressure Plate | Yes |
| Pressure Plate Material | Steel |
| Pressure Plate Color | Orange |
| Pressure Plate Finish | Powder Coat |
| Flywheel Included | Yes |
| Flywheel Diameter | 14.096 in |
| Flywheel Tooth Count | 168 |
| Flywheel Balance | Internal |
| Flywheel Mounting Bolt Quantity | 8 |
| Flywheel Material | Steel |
| Pilot Bearing Included | Yes |
| Alignment Tool Included | Yes |
| Alignment Tool Material | Plastic |
| Hardware Included | Yes |
| Quantity | Kit |
Usage & Application
The DYAD DS clutch system is designed for high-performance street cars, weekend track vehicles, and heavily modified Camaro builds that demand superior torque capacity without sacrificing drivability. Its advanced dual-disc design makes it an excellent choice for supercharged, high-horsepower, and performance-oriented applications.Vehicle Compatibility
- Chevrolet Camaro LSA (2012-2015)
Clutch System Design & Durability
Centerforce engineered the DYAD DS to provide exceptional performance under demanding conditions. The dual-disc configuration increases friction surface area for enhanced holding power while reducing pedal effort compared to many conventional performance clutches. Organic and carbon friction materials deliver a balance of durability, heat resistance, and engagement quality. The included steel flywheel and weight-assisted pressure plate further contribute to reliable operation and consistent performance in both street and track environments.Package Includes
- Dual clutch discs
- Diaphragm pressure plate
- Steel flywheel
- Pilot bearing
- Alignment tool
- Installation hardware
Installation Notes
- Designed for compatible Chevrolet Camaro LSA applications.
- Professional installation is recommended.
- Flywheel and clutch components should be installed according to manufacturer specifications.
- Verify transmission input shaft spline count before installation.
- Includes hardware required for installation.
Ideal For
- High-horsepower street vehicles.
- Supercharged Camaro builds.
- Performance enthusiasts seeking increased clutch capacity.
- Street and track-driven applications.
- Drivers upgrading from factory or single-disc clutch systems.
