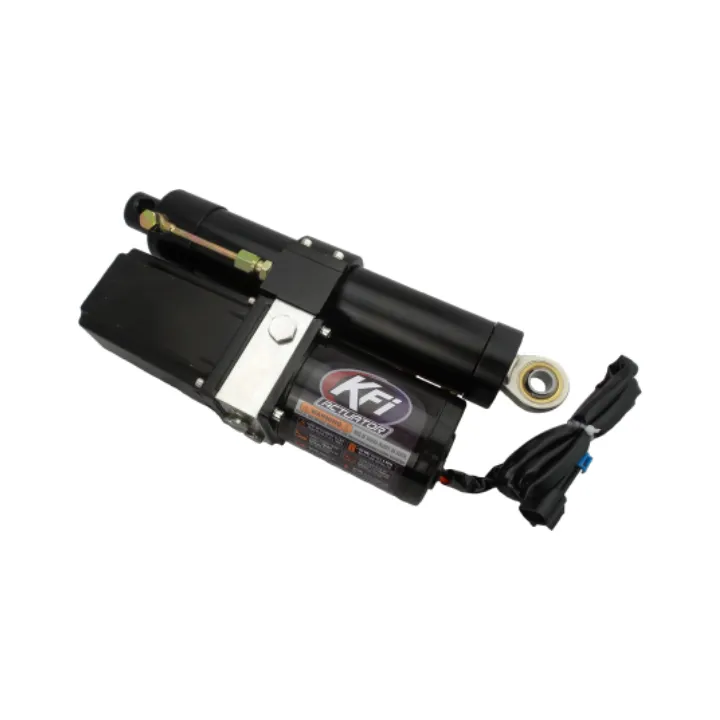

Color: Black | Type: ActuatoGetting out of a warm cab to manually angle your plow blade in the middle of a snowstorm is one of those things you only have to do a few times before you start looking for a better solution. The KFI Hydraulic Actuator is that solution — it lets you rotate the blade from side to side without leaving your seat.This listing is the replacement actuator unit for riders and operators who already have a KFI plow setup and need to replace a worn or damaged actuator. Same unit, same fit, direct replacement for the original.
Key Specs
Type: Electric over Hydraulic Cylinder
Voltage: 12V
Connector: Metri-Pak 280 2-Pin Series Male End
Color: Black
Warranty: 1 Year KFI Limited Warranty / 18 months on Parker Hydraulic actuator based on manufactured date
Shipping Weight: 18.5 lbs
What It Does
The KFI Actuator is an American-made hydraulic pivot that allows you to rotate the blade from side to side while staying in the comfort of your cab. It rotates up to a full 25 degrees in both directions.The electric over hydraulic design means the 12V system on your UTV handles the work. Push the control, the actuator moves, the blade angles. No getting out in the cold, no manually repositioning, no interrupting the job to fight with a stiff pin on a frozen mount.The hydraulic system is sealed and should only be serviced by KFI Products. Special tools are required to bleed the actuator properly. This is worth knowing before you purchase — if the unit ever needs internal service, that goes back to KFI rather than being a DIY repair. For normal operation and installation, it's a straightforward swap.
Compatibility
The ACT203 is specifically designed for use with KFI UTV Tubes. It is a direct replacement unit for existing KFI plow setups running compatible push tube systems.Specifically designed for use with UTV push tube 10-5635.This actuator does NOT include the tube system, bracket kit, or wire harness. Those components need to be purchased separately if you don't already have them. Tube system 105635 requires Bracket Kit #105895 and Wire Harness #105940. If you're replacing a failed actuator on an existing setup, you likely already have these pieces — just confirm before ordering.
Installation
This is a replacement unit, so it mounts onto your existing KFI UTV push tube setup. No new tubes, no new brackets — bolt the actuator in place, connect the Metri-Pak 2-pin connector to your existing wire harness, and you're back in operation.Keep your original pin for angling the blade. If this actuator needs service, your plow system can be angled manually with the original pin as a service pin in the meantime. Good to know if you're ever in a situation where the actuator needs attention mid-season — you're not dead in the water without it.Make sure the hydraulic system stays sealed during installation. Don't open the hydraulic side — opening the hydraulic side will introduce air into the system, and special tools are required to bleed the actuator properly.
Who This Is For
Anyone running a KFI UTV plow setup with a hydraulic actuator that has failed, is leaking, or is no longer angling the blade reliably. This is the correct replacement part to get your system back to full function without replacing the entire plow setup.It also makes sense for operators building out a KFI push tube system and adding hydraulic angling capability for the first time — just make sure you have the required bracket kit and wire harness before installing.
Key Benefits
Electric over hydraulic operation — 12V system powers the blade angle from the cab. No manual repositioning, no getting out in the cold.25 degrees of rotation in both directions — Full angling range to move snow where you want it without repositioning the machine.American-made — KFI builds this actuator domestically. Quality and fitment you can count on for a component that gets used hard in demanding conditions.Sealed hydraulic system — Factory sealed for reliability and longevity. No maintenance required during normal operation.Metri-Pak 280 2-Pin connector — Plugs directly into the KFI wire harness. Clean, weatherproof connection that holds up to winter use.Direct replacement fit — Designed specifically for KFI UTV tube systems. Bolts on where the original came off.
FAQs
Does this include the push tube, bracket kit, or wire harness?No. This is the actuator unit only. The push tube system, bracket kit, and wire harness are sold separately. If you are replacing a failed actuator on an existing KFI setup, you likely already have these components. If you are building a new system, you will need push tube #10-5635, bracket kit #105895, and wire harness #105940 in addition to this actuator. What plow tube system is this compatible with? The ACT203 is designed specifically for use with KFI UTV push tube system #10-5635. Confirm your tube system matches before ordering. Can I service the hydraulic system myself? No — the hydraulic system is factory sealed and should only be serviced by KFI Products. Opening the hydraulic side introduces air into the system, and specialized tools are required to bleed it properly. If the hydraulic system needs internal service, contact KFI directly. What happens if the actuator needs service mid-season? Your original blade-angling pin can be used as a manual service pin to angle the blade while the actuator is out for service. You are not stuck with a fixed blade angle if the unit needs attention. What is the warranty? The ACT203 carries a 1-year KFI Limited Warranty. The Parker Hydraulic actuator component specifically carries an 18-month warranty based on manufactured date. Purchase from an authorized dealer like WyldPerformance.com to ensure your warranty coverage is valid. Does this work on Can-Am Defender or Polaris Ranger setups? The ACT203 is designed for KFI UTV tube systems, and KFI makes a wide range of vehicle-specific mounting hardware for most major UTV brands. As long as your machine is running the compatible KFI push tube system, the actuator will work. Check KFI's fitment guide to confirm your specific vehicle and tube system are compatible.
